    • Pipe Annotation & Shopdrawings Tools

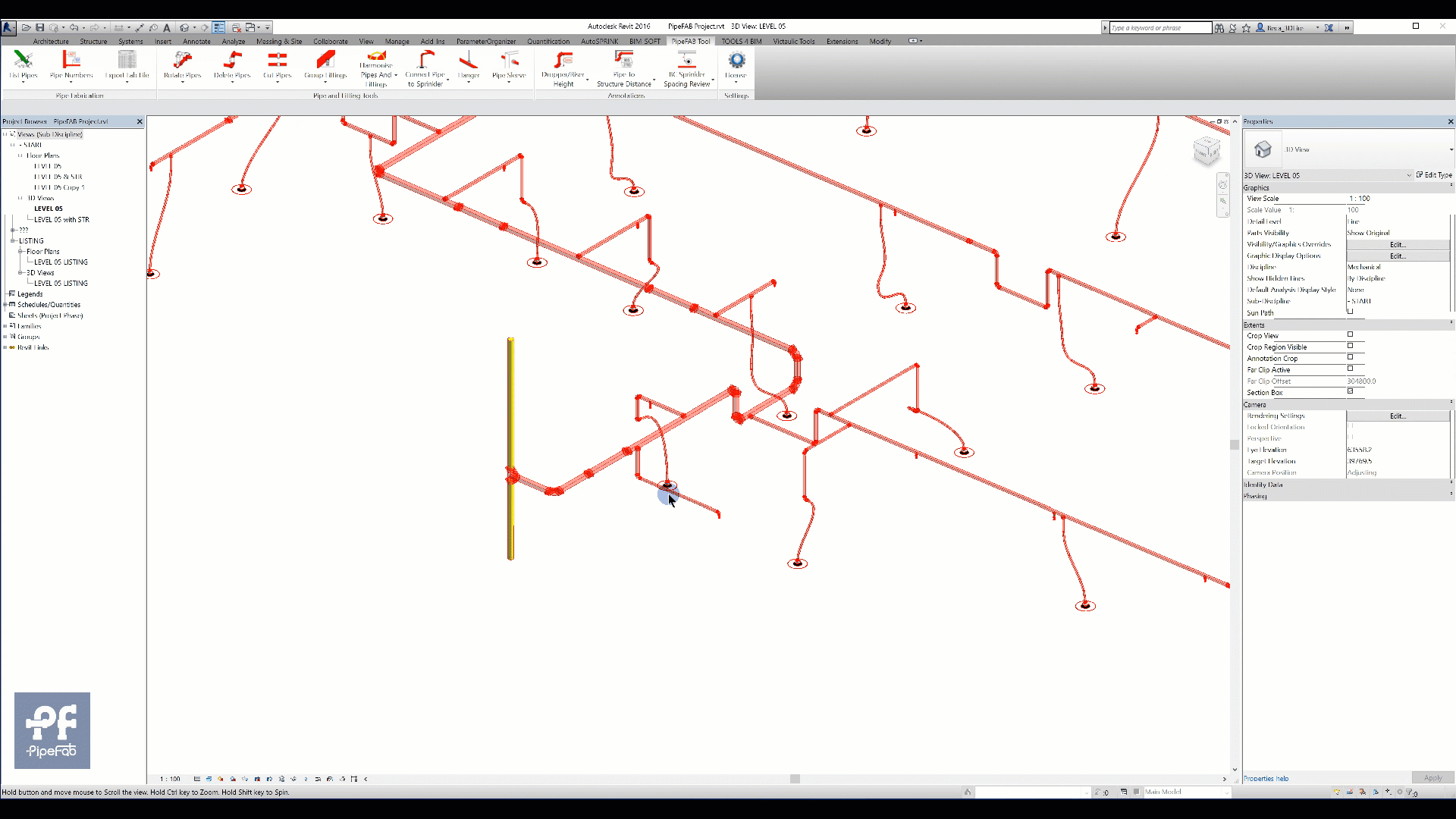

    Dropper/Riser Height

    Gives the overall length and direction of the pipe (Up or Down)

    Pipe To Structure Distance

    Automatically tags pipe Distance to structural slabs/beams. provides the useful data for installation drawings and distances to all the structural elements from center of the pipe.

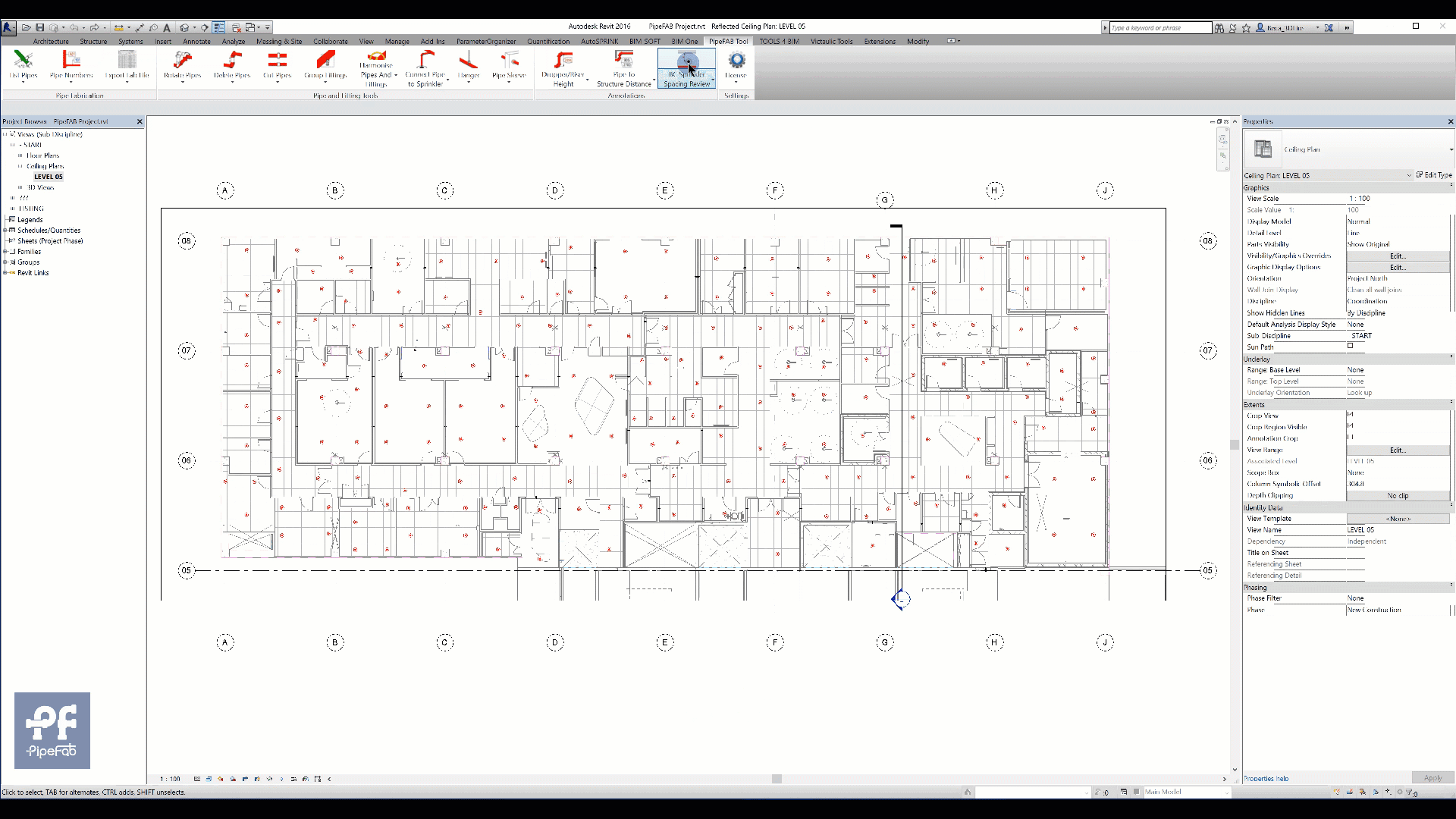

    BC Sprinkler Spacing Review

    Automatically dimensions the sprinkler to sprinkler and sprinkler to wall distances.

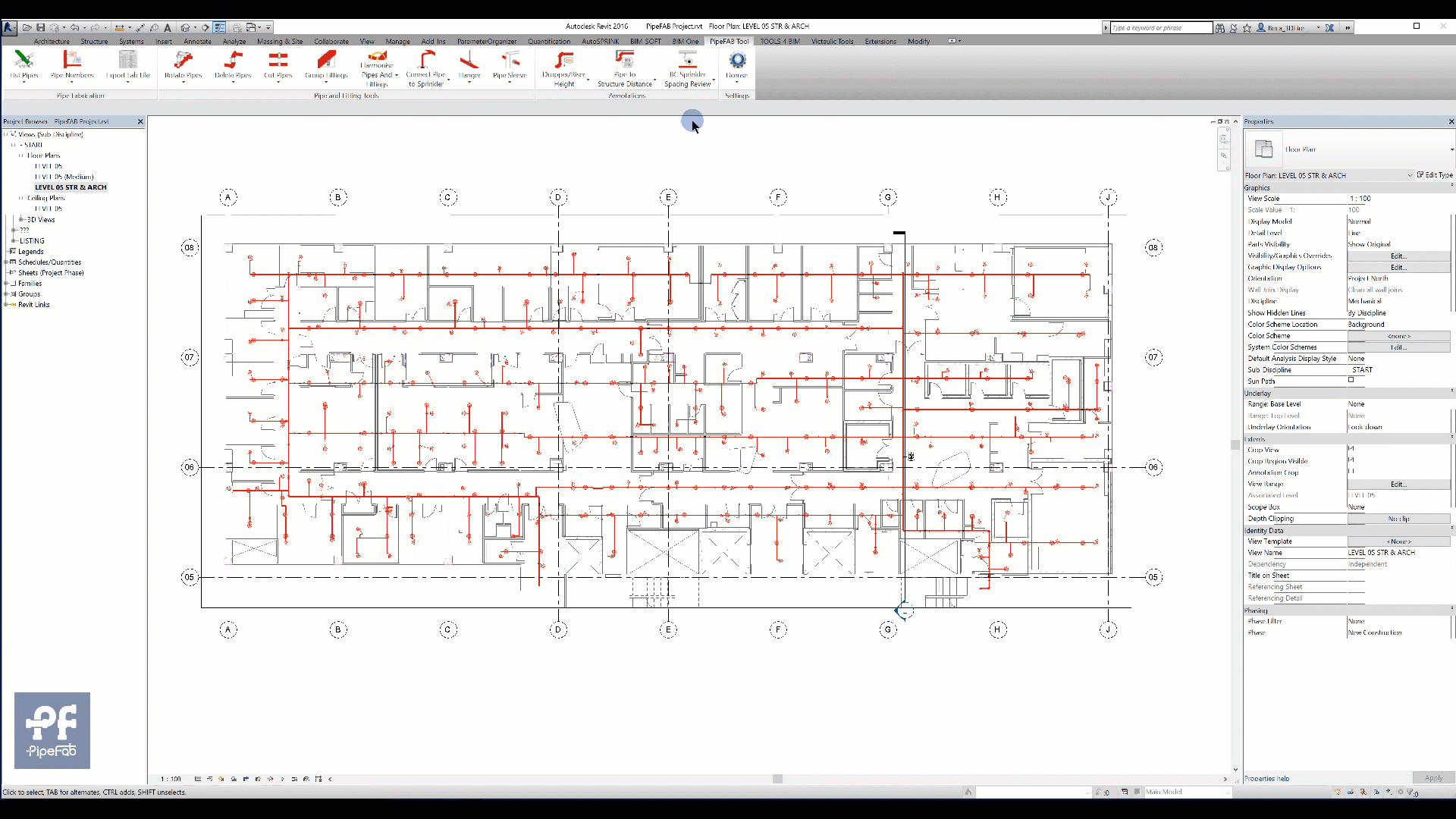

    CS/EXP Sprinkler Spacing Review

    Automatically dimensions the sprinkler to sprinkler and sprinkler to wall distances.
